Home /Products/Front Load Dryer/Oven Wood Dryer Machine Radio Frequency Vacuum Dryer 30 KW HF Vacuum Wood Dryer Machine For Sale

Oven Wood Dryer Machine Radio Frequency Vacuum Dryer 30 KW HF Vacuum Wood Dryer Machine For Sale

1 Set
MOQ
$43,800.00(1 - 1 Sets) $42,900.00(>=2 Sets)
Price
Oven Wood Dryer Machine Radio Frequency Vacuum Dryer 30 KW HF Vacuum Wood Dryer Machine For Sale
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Machine Type: Wood Drying Machine
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC, Motor, Pressure Vessel, Pump, Generator
Warranty: 1 Year
Weight (KG): 8000 KG
Power (kW): 30KW
Key Selling Points: Easy To Operate
Showroom Location: Egypt, Canada, Turkey, United States, Viet Nam, Philippines, Brazil, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Argentina, South Korea, Chile, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nige
Applicable Industries: Furniture Factory Machinery Agent
Application: Radio Frequency Vacuum Drying Oven
Function: Use High-tech Technology To Dry Wood With Little Error
Keywords: Vacuum Wood Dryer
Voltage: 380V
Capacity: (3,4,5,6,10,14,20,30)m3
Package: PP Film
Heating Ways: High Frequency Generator
Certification: CE
Advantage: High Efficiency And Stable Quality
Brand: JYC
After-sales Service Provided: Free Spare Parts
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Canada, Turkey, United States, Viet Nam, Philippines, Brazil, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Malaysia, Australia, Argentina, South Korea, Chile, Algeria, Sri Lanka, Romania, Bangladesh, Ukraine, Kyrgyzstan, Nigeria
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: Film & foam & Wooden box
Supply Ability: 150 Set/Sets per Year
Product Description

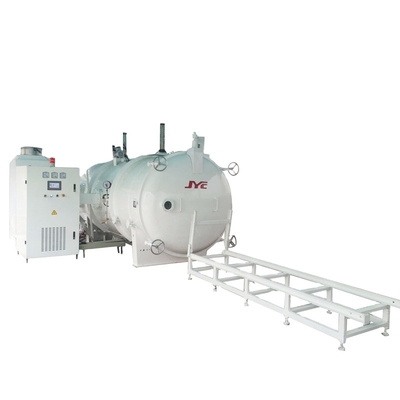

JYC High Frequency vacuum wood dryer

Flow chart

Thick board and large board drying
Floor drying
Redwood drying
Veneer drying
Secondary drying

Layout plan

According to the thickness,density and moisture content of the wood,adjust the drying process,suitable for the drying of all wood.
Technical Paramenters
Model No.
GJG-3II-10(20)B-JY
GJG-4II-20(30)B-JY
GJG-5II-20(30)B-JY
GJG-6II-20(30)B-JY
GJG-10II-30(50)B-JY
GJG-14II-30(50)B-JY
GJG-20II-50(80)B-JY
GJG-30II-100(120)B-JY
Capability
(m3)
3
4
5
6
10
14
20
30
Power
AC 380V,50Hz,3p 4wires or custom
Output power
10-20KW
20KW-30KW
20KW-30KW
20KW-30KW
30KW-50KW
50KW-80KW
80KW-100KW
100KW-120KW
Working Temperature
50 to 90℃
Loading size(mm)
3000*1000*1000
4000*1000*1000
3000*1300*1300
6000*1000*1000
6000*1300*1300
8000*1300*1300
8000*1600*1600
8000*2000*2000
Frequency
6.78MHz-27.12MHz
Vacuum
limit-0.092MPa
We can provide customized services according to the different needs of customers.



1.We obtained the industry's first utility model patent for high-frequency wood drying in 2009. 2.Fully automatic control of wood drying process,truly "unattended". 3.A variety of drying process options and multi-sensor monitoring device to ensure the quality of wood dryer and equipment safety and stability. 4.Support remote assistance to achieve remote maintenance and system upgrade(optional).
5.Intuitive operation interface,detailed operation curve and accurate operation data.
The predecessor of Foshan Jiyuan Dehua Equipment Co., Ltd.-Shijiazhuang Development Zone Jiyuan High Frequency Electric Company was established in 1993. The company has been committed to the research and development, manufacturing and sales of high-frequency dielectric heating technology and equipment. Has 27 years of technology accumulation and rich manufacturing experience. JYC Company has grown up with China's woodworking machinery industry and witnessed the development of woodworking machinery from small to large, from weak to strong. The company was elected as the director unit of China Forestry Machinery Association in 2005, and is the only director in the high-frequency woodworking machinery industry. In 2012, Jiyuan Company became the standing director unit of the Wood Drying Professional Committee of China Forest Products Industry Association, and one of the drafting units for revising the industry standard for wood vacuum drying equipment.
Q: Are you a manufacturer?
A: Yes, we are an enterprise integrating industry and trade.
Q: Which payment method can you use?
A: We have some flexibility in terms of payment, please contact us for detailed information.
Q: What should I do if I am just beginning to learn about vacuum wood dryer?
A: Please contact us immediately, we provide free consultant pre-sale service.
Q: Where are our company?
A:No.10 Shunchang Road ,Wusha Industrial Park,Shunde District,Foshan,Guangdong,China.
Welcome to our company.
